Sony DXA-D9 Dual Cassette Deck

SKU: 28874
Category: Audio technology
Manufacturers: Sony

Optischer Zustand: siehe Originalbilder

Select from the following variants:

Gerät: 1. DXA-D9 599,00 €

599,00 €

incl. 19% VAT , plus

This item has variations. Please select the requested variation.

Description
Reviews

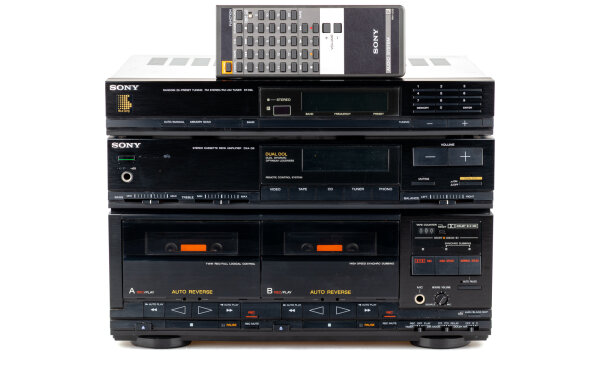

Sony DXA-D9 — dual cassette deck with built-in amplifier, supplied with the ST-D9L tuner

Two components of a Sony system change hands together here: the DXA-D9, a dual cassette deck with a built-in amplifier section, and the matching ST-D9L tuner. The DXA-D9 is the heart of the pair — it takes the sources, controls the volume and drives the loudspeakers. The ST-D9L adds radio. It has no RCA outputs of its own: it works together with the DXA-D9 through the system control connection and is therefore not intended for stand-alone use.

Anyone with cassettes still on the shelf gets a tape centre with two transports. A turntable, a CD player and the audio of a video source can be connected, as can a microphone on the front panel. Together with a pair of loudspeakers this makes a complete small system — for a study, a hobby room or a guest room where a full-size hi-fi chain will not fit.

Highlights & Features

Dual cassette transport: deck A and deck B both record and play back, each with auto reverse — the tape continues at the end of the side without turning the cassette over.
High Speed Synchro Dubbing: deck-to-deck copying at normal or double speed (A+B Rec, High Speed and Normal Speed keys).
Twin Rec with Full Logical Control: recording on both transports; the transport keys are electronically controlled.
Relay: when deck A has finished, deck B takes over for long unattended playback. Deck B start key, auto pause and Dir Mode slide switch included.
Dolby B and Dolby C noise reduction, selected on a slide switch (Off / B / C); Dolby C reduces tape hiss considerably further than Dolby B.
AMS and Blank Skip: track search using the pauses between recordings, unrecorded passages are skipped.
Microphone input (6.3 mm jack) on the front panel with mixing volume: voice and programme source can be balanced against each other while recording.
Amplifier section with source selection for Video, Tape, CD, Tuner and Phono, slide controls for bass, treble and balance, Dual DOL (loudness) and a muting key; volume is set with a rocker key.
Timer slide switch (Rec / Off / Play) for time-controlled recording and playback via an external timer.
Tape loop for a graphic equaliser via separate RCA sockets (Graphic Equalizer In and Out).
Phono input with earth terminal for a turntable, headphone jack (6.3 mm) on the front, three-digit tape counter with reset, fluorescent display and an AC outlet on the rear panel.
ST-D9L: FM tuner with 20 station presets, numeric keypad 0–9 with Memory and Enter, Memory Scan, auto/manual switching and tuning +/−; the display shows band, frequency, preset and stereo reception. MW and LW bands are also present, but are no longer broadcast in Germany.
Operation via the supplied original Sony RM-L105 remote control: source selection Video, Tape, CD, Tuner and Phono, numeric keys 1–20, tape transport including record, volume and muting.

Technical Data:

Dual cassette deck with amplifier section (DXA-D9) and separate tuner (ST-D9L); both rating plates assign the units to the LBT-D9 stereo component system
Noise reduction: Dolby B and Dolby C
Loudspeaker impedance: 6 – 16 ohms
Tape counter: three digits, mechanical, with reset
Reception ranges ST-D9L: FM 87.5 – 108 MHz; also MW 522 – 1611 kHz and LW 144 – 288 kHz (neither band is broadcast in Germany any more)
Intermediate frequency ST-D9L: FM 10.7 MHz, AM 450 kHz
Station presets: 20
Mains cable permanently attached to the DXA-D9; AC outlet (unswitched) max. 100 W

Scope of Delivery:

Sony DXA-D9 dual cassette deck with amplifier section
Sony ST-D9L tuner
Original Sony RM-L105 remote control
two system control ribbon cables linking the two units

Connections

DXA-D9: phono input RCA L/R with earth terminal
DXA-D9: CD input RCA L/R
DXA-D9: video input RCA L/R
DXA-D9: video output RCA L/R
DXA-D9: Graphic Equalizer In and Out, RCA L/R (tape loop)
DXA-D9: loudspeaker terminals L and R, spring clips for bare wire ends, 6 – 16 ohms
DXA-D9: microphone input 6.3 mm jack on the front panel
DXA-D9: headphone output 6.3 mm jack on the front panel
DXA-D9: System Control 1 and 2 (ribbon cable)
DXA-D9: AC outlet on the rear panel (unswitched, max. 100 W)
ST-D9L: FM aerial 75 ohms coaxial (F connector)
ST-D9L: aerial terminals for MW and LW
ST-D9L: System Control 1 and 2 (ribbon cable)
ST-D9L: Control S Out
The ST-D9L has no RCA audio outputs of its own; the audio link to the DXA-D9 runs through the system control cables.

Condition & warranty

This unit is used and has been refurbished by us: it is inspected and reconditioned in our specialist workshop before being released for sale. It comes with a 12-month Positron-e workshop warranty — a genuine functional warranty that also covers drive and wear parts (full details in our warranty terms). The warranty applies in addition to your statutory warranty rights of at least 24 months — these rights remain unaffected.

Shipping weight:	4,90 kg
Item weight:	4,00 kg
