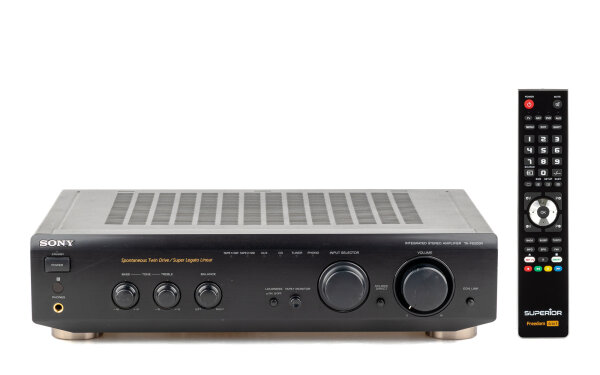

Sony TA-FE500R Integrated Amplifier black

Technical condition

professionally checked and serviced (more Information)
Secure purchase on account possible, incl. 12-month guarantee **.

Sony TA-FE500R Integrated Amplifier black

SKU: 29820
Category: Audio technology
Manufacturers: Sony

Select from the following variants:

Optischer Zustand (mehr Infos): Sehr gut 224,10 €

175,50 €

incl. 19% VAT , plus

Old price: 235,00 €

This item has variations. Please select the requested variation.

Description
Reviews

Sony TA-FE500R – Black Stereo Integrated Amplifier with Phono Input, Source Direct and EON Link

Six sources, two large knobs at the centre of the front panel and an output stage rated at 75 watts per channel into 4 ohms and 55 watts into 8 ohms (DIN): Sony designed the TA-FE500R as a stereo integrated amplifier in the standard 430 mm width that slots straight into an existing hi-fi system. The service manual describes the power stage as a complementary SEPP OCL circuit with all stages directly coupled, preceded by a low-noise equalizer preamplifier.

It works with speakers from 4 to 16 ohms, and the black casing blends in discreetly among dark components in a rack.

Highlights & Features

Source direct: one button routes the selected source past the tone and loudness controls; an indicator shows when the direct path is active.
Phono input with RIAA equalisation: a turntable can be connected without a separate preamp, with the ground terminal on the rear.
Two full recording loops TAPE1/DAT and TAPE2/MD, each with its own REC OUT – room for a cassette deck, MiniDisc recorder or DAT deck at the same time.
TAPE 1 MONITOR button: with a deck offering off-tape monitoring, the running recording can be heard directly through the amplifier.
Separate bass and treble controls (−10 to +10 each), plus balance and switchable loudness for low listening levels.
EON LINK: button on the front and EON CONTROL socket on the rear for linked operation with a matching Sony tuner.
Indicators above the input selector show the active source; infrared receiver for the remote control and standby indicator at the power button.
Headphone jack (6.3 mm) on the front and three switched AC outlets on the rear (max. 100 W in total) for further components.

Technical Data:

Output power (DIN): 2 × 75 W (4 ohms, 1 kHz)
Output power (DIN): 2 × 55 W (8 ohms, 1 kHz)
Frequency response (line): 7 Hz – 70 kHz (+0/−3 dB)
Frequency response phono: RIAA equalisation ±0.5 dB (20 Hz – 20 kHz)
Signal-to-noise ratio (A-weighted): 105 dB (line), 80 dB (phono)
Damping factor: 60 (8 ohms, 1 kHz)
Speaker impedance: 4–16 ohms
Power amplifier with all stages directly coupled, low-noise equalizer preamplifier
Dimensions (W×H×D): 430 × 105 × 290 mm (incl. projecting parts)
Weight: 4.7 kg

Connections

1 x phono input (RCA, L/R) with ground terminal
3 x line input RCA (tuner, CD, aux)
2 x recording loop RCA (tape 1/DAT and tape 2/MD, each REC OUT and IN)
1 pair of speaker terminals for bare wire (4–16 ohms)
1 x headphone jack (6.3 mm, front)
1 x EON CONTROL IN (control connector)
3 x AC outlet (switched, max. 100 W in total)
Mains lead (permanently attached)

Condition & warranty

This unit is used and has been refurbished by us: it is inspected and reconditioned in our specialist workshop before being released for sale. It comes with a 12-month Positron-e workshop warranty — a genuine functional warranty that also covers drive and wear parts (full details in our warranty terms). The warranty applies in addition to your statutory warranty rights of at least 24 months — these rights remain unaffected.

Shipping weight:	5,05 kg
Item weight:	4,41 kg
