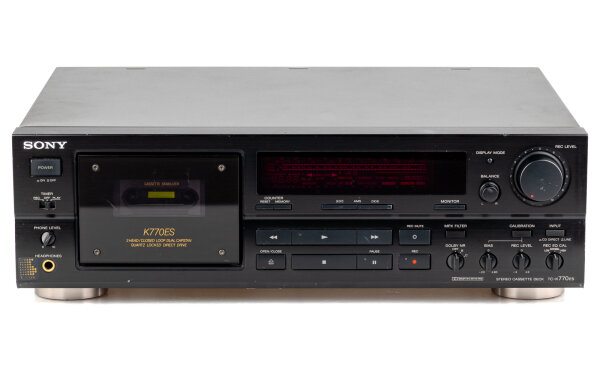

Sony TC-K770ES Cassette Deck black

SKU: b26604
Category: Audio technology
Manufacturers: Sony

Optischer Zustand: siehe Originalbilder

Select from the following variants:

Gerät: 3. TC-K770ES 899,00 €

4. TC-K770ES 899,00 €

899,00 €

incl. 19% VAT , plus

This item has variations. Please select the requested variation.

Description
Reviews

Sony TC-K770ES — 3-head cassette deck with closed-loop dual capstan, quartz-locked direct drive, 3 motors and HX Pro

Quartz-locked direct drive, a closed tape path between two capstan shafts and three separate heads: Sony designed the TC-K770ES from its ES line squarely for precise home recordings. According to the service manual, wow and flutter stays at 0.025 % (WRMS), and because the record and playback heads work separately, the freshly recorded tape can be heard while recording is still in progress and compared with the source.

In everyday use the deck suits anyone who wants to treat every cassette individually instead of relying on factory settings. Bias and recording level are matched to the loaded tape by hand using built-in test tones, and the CD player gets its own direct input. It works just as well as a playback machine for an established collection of Dolby B and Dolby C recordings.

Highlights & Features

3-head transport: separate record and playback heads (permalloy according to the service manual) plus a sendust-ferrite erase head; off-tape monitoring via the MONITOR button (SOURCE/TAPE) to compare the recording with the source signal while the tape is running.
Closed-loop dual capstan with quartz-locked direct drive (printed on the cassette door): according to the service manual the capstan is driven directly by a linear-torque BSL motor, joined by a DC reel motor and another DC motor – three motors in total. A cassette stabilizer in the door holds the cassette steady.
Manual tape calibration: the CALIBRATION button switches on test tones of 400 Hz and 8 kHz; BIAS (±20 %) and REC LEVEL (±3 dB) set bias and recording sensitivity so that both level meters read the same.
REC EQ CAL (LOW / NORMAL / HIGH) additionally changes the recording characteristic to lift or soften the treble to suit the music or unusual tape types; the basic setting for normal, chrome and metal tape is handled by Automatic Tape Selection (ATS).
Dolby B and Dolby C selectable; Dolby HX Pro is not noise reduction but adjusts the bias during recording according to the high-frequency content of the signal, improving headroom in the upper frequency range; MPX filter for Dolby recordings of FM stereo broadcasts.
Fluorescent display with peak program meter for both channels, linear counter showing elapsed playing or recording time, and indicators for tape type, Dolby, MPX filter, HX Pro and monitor position; switchable via DISPLAY MODE.
AMS music search forwards and backwards, memory play via the counter MEMORY button, REC MUTE for inserting blank spaces and a REC / OFF / PLAY timer switch for timed recording or playback with an external audio timer.
CD DIRECT / LINE input selector on the front, large REC LEVEL control with separate BALANCE control, headphone output with its own PHONE LEVEL control; infrared receiver in the display for remote operation.

Technical Data:

3-head transport (permalloy record and playback heads, sendust-ferrite erase head), closed-loop dual capstan, quartz-locked direct drive, 3 motors
Dolby B / Dolby C, HX Pro, MPX filter, ATS tape selection
Wow and flutter: 0.025 % (WRMS), ±0.05 % W.Peak (IEC), ±0.07 % W.Peak (DIN)
Frequency response (Dolby off, ±3 dB, IEC): metal tape 20 – 21,000 Hz, chrome tape 20 – 19,000 Hz, normal tape 20 – 17,000 Hz
Signal-to-noise ratio (at peak level, metal tape): 61 dB Dolby off, 70 dB Dolby B, 76 dB Dolby C
Harmonic distortion: 1.0 % (metal tape)
Fast winding time: approx. 90 seconds (C-60 cassette)
Calibration range: bias ±20 %, recording level ±3 dB
Dimensions (W × H × D): 430 × 135 × 350 mm
Weight: 6.7 kg

Connections

CD direct input (CD DIRECT IN) cinch (RCA) L/R
Line input (LINE IN) cinch (RCA) L/R
Line output (LINE OUT) cinch (RCA) L/R
Headphone output 6.3 mm jack on the front with level control

Condition & warranty

This unit is used and has been refurbished by us: it is inspected and reconditioned in our specialist workshop before being released for sale. It comes with a 12-month Positron-e workshop warranty — a genuine functional warranty that also covers drive and wear parts (full details in our warranty terms). The warranty applies in addition to your statutory warranty rights of at least 24 months — these rights remain unaffected.
