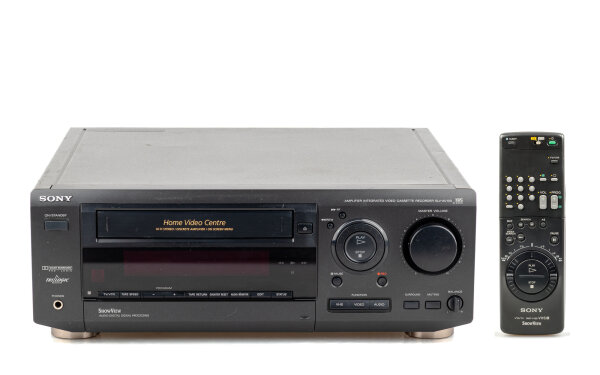

Sony SLV-AV100 VHS Video Recorder with AV Amplifier black

Technical condition

professionally checked and serviced (more Information)
Secure purchase on account possible, incl. 12-month guarantee **.

Sony SLV-AV100 VHS Video Recorder with AV Amplifier black

SKU: 30869
Category: Video technology
Manufacturers: Sony

Optischer Zustand: siehe Originalbilder

Select from the following variants:

Geräte: 1. SLV-AV100 565,00 €

565,00 €

incl. 19% VAT , plus

This item has variations. Please select the requested variation.

Description
Reviews

Sony SLV-AV100 — VHS hi-fi video recorder with built-in Dolby Pro Logic amplifier

One unit, two jobs: the SLV-AV100 houses a hi-fi stereo video recorder together with a discrete multi-channel amplifier in a single chassis. Sony called the concept Home Video Centre — the recorder plays and records, while the built-in amplifier drives front, centre and rear speakers directly and decodes Dolby Surround and Dolby Pro Logic. A separate AV receiver becomes unnecessary, and picture and sound are set up through an on-screen menu on the television.

The unit suits any compact home cinema or living-room system built around VHS tapes: a CD player, tape or MD deck and a second source connect to the RCA inputs, and the television hangs off the recorder via SCART. The SLV-AV100 also works as a plain amplifier for stereo sources; the recorder section does not need to run for that.

Highlights & Features

Hi-fi stereo video recorder and surround amplifier in one chassis: speaker terminals for front L/R, centre and rear L/R (4–16 ohms) plus Mix Out for an active subwoofer.
Decodes Dolby Pro Logic Surround and Dolby Surround; Tri Logic (3-channel logic) gives a surround effect over front and centre speakers even without rear speakers.
Digital sound fields (Audio Digital Signal Processing) for film, music and game sources, stored separately for each input; the SURROUND key on the front switches the effect off and on.
Sound settings via the on-screen menu: bass and treble, bass boost, centre mode (Normal / Wide / Phantom / 3CH Logic); balance control and muting key on the front panel.
Shuttle ring around the play/stop key for still frame, slow motion, picture search at several speeds and reverse playback.
AUDIO MONITOR selects stereo, left or right channel or the normal (mono) track during playback; TAPE SPEED for standard and long play.
EDIT switch for dubbing from a second VCR or LD player; source selection VHS / VIDEO / AUDIO via the FUNCTION keys.
NTSC playback on PAL television sets (NTSC 4.43 switch on the rear); front VIDEO 2 input behind the flap for a camcorder or games console.
Switched AC outlet on the rear for another component; headphone output on the front mutes the speakers.

Technical Data:

VHS (PAL), NTSC playback on PAL TV (NTSC 4.43)
Hi-fi stereo sound (hi-fi track and normal track)
Dolby Pro Logic Surround, Dolby Surround, Tri Logic
Amplifier frequency response: 10 Hz – 50 kHz (±1 dB, CD/Tape/Video/Line)
Tone control: bass and treble ±8 dB (100 Hz / 10 kHz), bass boost +10 dB (70 Hz)
Muting: −20 dB
Speaker impedance: 4 – 16 ohms
Dimensions (W×H×D): 430 × 157 × 430 mm
Weight: approx. 13 kg

Connections

2 x SCART: AV IN / VIDEO OUT (EURO-AV) and PAY-TV DECODER
Video inputs VIDEO 1 and LINE (composite, RCA)
MONITOR VIDEO OUT (composite, RCA)
Audio inputs RCA L/R: TUNER, CD, TAPE/MD, VIDEO 1, LINE
TAPE/MD REC OUT (RCA L/R) for recording to a tape or MD deck
Front input VIDEO 2: video and audio L/R (RCA, behind the flap)
Speaker terminals: FRONT L/R, SURROUND REAR L/R, CENTRE (spring clips)
MIX OUT (RCA) for an active subwoofer
Headphone output (front)
Aerial input and output (AERIAL IN/OUT), switchable RF modulator
Switched AC outlet (max. 100 W)

Condition & warranty

This unit is used and has been refurbished by us: it is inspected and reconditioned in our specialist workshop before being released for sale. It comes with a 12-month Positron-e workshop warranty — a genuine functional warranty that also covers drive and wear parts (full details in our warranty terms). The warranty applies in addition to your statutory warranty rights of at least 24 months — these rights remain unaffected.

Shipping weight:	15,60 kg
Item weight:	14,00 kg
